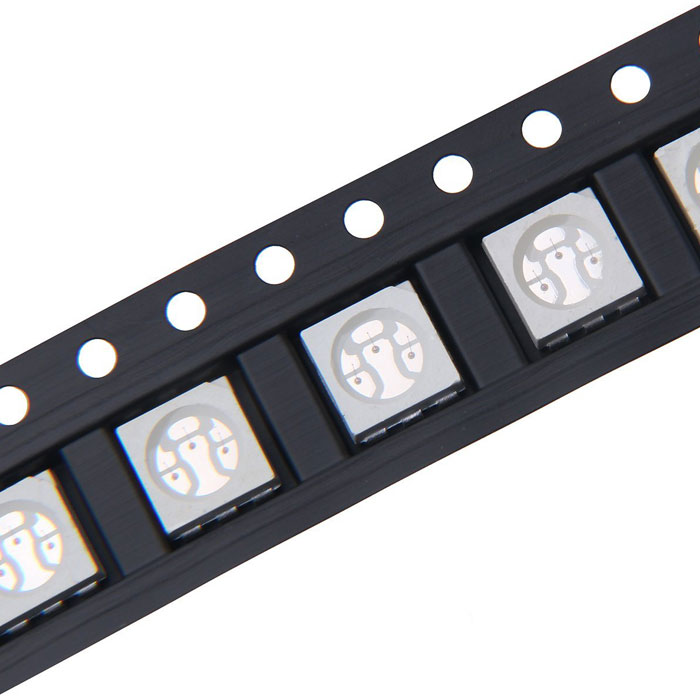

5050 SMD LED - 625nm Red Surface Mount LED w/120 Degree Viewing Angle - 10PCS

Price:   $4.95

  • Model: 5050LEDs-RED
  • Shipping Weight: 0.05kg
  • 99999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 13/05/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    65W Full-Spectrum LED Grow Light - 5-Band Red/Blue/UV/IR/White for Indoor Plant Growth
    $59.95
    ST26/ST64 LED Filament Bulb - Gold Tint Vintage Light Bulb - 60 Watt Equivalent - Dimmable - 650 Lumens, 6-Pack
    $32.95
    ST18 LED Filament Bulb - Gold Tint Vintage Light Bulb - 40 Watt Equivalent - Dimmable - 343 Lumens, 6-Pack
    $32.95
    B10 LED Filament Bulb - 25 Watt Equivalent Candelabra LED Bulb w/ Gold Tint - Dimmable - 250 Lumens, 6-Pack
    $18.95
    • Details
    • Reviews
    • Tags
    • FAQ

    The 5mm 3 chip surface mount component LED in Red features a 625nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement.Price listed is per 10 unit, Also available in Green, Blue, and Yellow.



    Specifications



    Continuous Forward Current 3x20 mA Forward Voltage 2.0V
    LED Brand Epistar LED Color Red
    LED Package 5mm x 5mm LED Type 5050 SMD
    Lumen 4 Lumen Millicandela 1200mcd
    Operating Temperature -20~+80 °C Peak Forward Current 3x100mA
    Power Dissipation 3x120mW Reverse Voltage 5V
    Storage Temperature -40~+85 °C Total Power Consumption 0.12 Watts
    Viewing Angle 120 degree Wavelength 625 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)

    All specifications are subject to change without notice.



    package Dimensions

    Part Number: 5050LEDs-RED
    Red 5050
    absolute maximum ratings: (TA=25°C)
    PARAMETER SYMBOL Rating UNIT
    Power Dissipation PD 3x120 mW
    Continuous Forward Current IF 3x20 mA
    Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) IFM 3x100 mA
    Reverse Voltage VR 5 V
    Operating Temperature TA -20~+80 °C
    Storage Temperature Tstg -40~+85 °C
    Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)

    Optoelectric Characteristics
    PARAMETER SYMBOL MAX TYP UNIT TEST
    View Angle of Half Power 2ø1/2 -- 120 Degree --
    Forward Voltage VF -- 2 V IF=20mA
    Dominant Emission Wavelength -- -- Red -- --
    Luminous Intensity -- -- 4 lm --
    Millicandela Output IV -- 1200 mcd IF=20mA

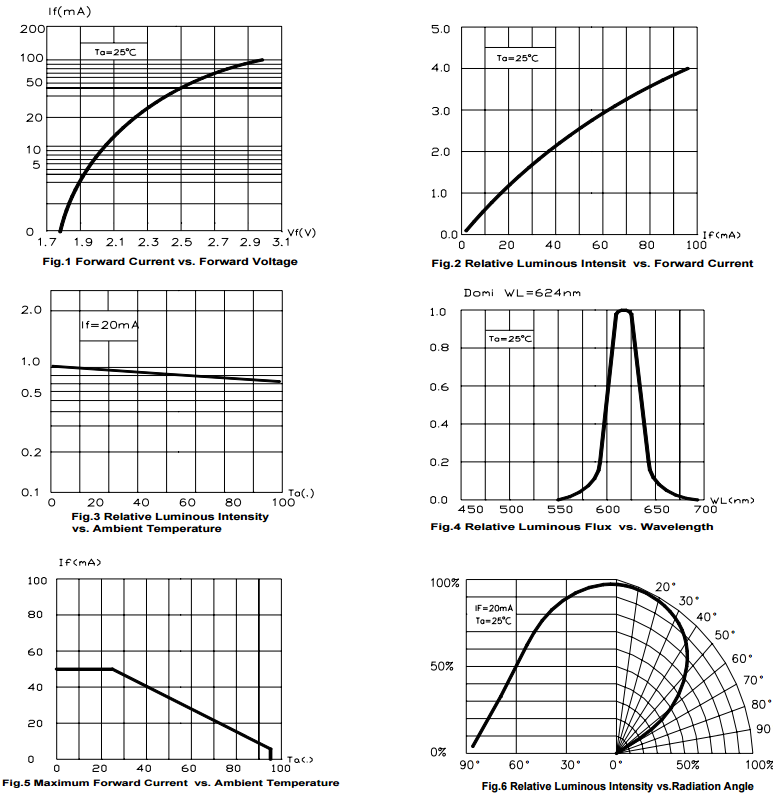

    Typical Electro-Optical Characteristics Curves
