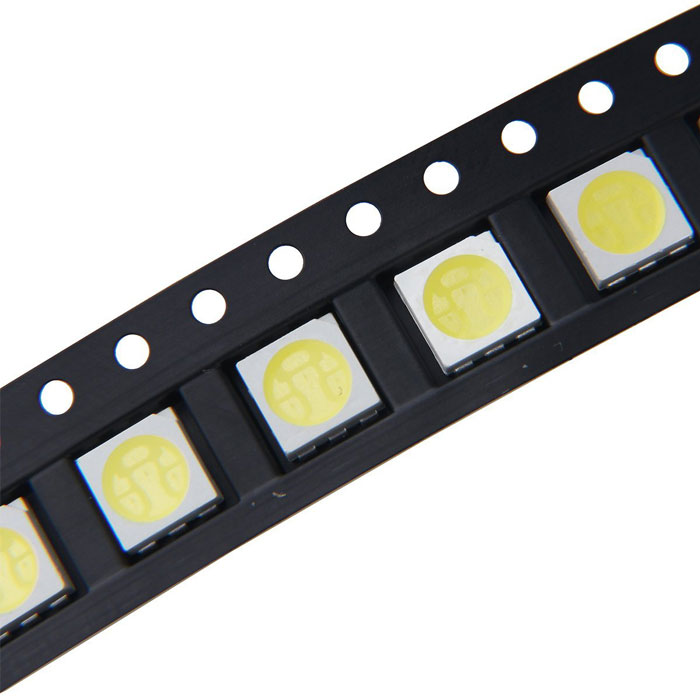

5050 SMD LED - 10500K Cool White Surface Mount LED w/120 Degree Viewing Angle - 10pcs

Price:   $4.59

  • Model: 5050LEDs-CW
  • Shipping Weight: 0.005kg
  • 20000 Units in Stock

(0 reviews)
(complete orders today,deliverd around 14/05/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    18W T8 LED Tube - 2,000 Lumens - 4ft - Ballast Bypass Type B - 32W Equivalent - 5000K/4000K/3000K
    $6.95
    18W T8 LED Tube - 2,070 Lumens - 4ft - Ballast Bypass Type B - 32W Equivalent - 5000K/4000K
    $6.95
    T8 LED Tube - 32W Equivalent - Ballast Bypass F32T8 Type B - 2,200 Lumens
    $6.95
    18W T8 LED Tube - 2,070 Lumens - 4ft - Single End Ballast Compatible/Ballast Bypass Type A/B - 32W Equivalent - 5000K/4000K/3500K
    $8.95
    • Details
    • Reviews
    • Tags
    • FAQ

    This 5050 SMD 3 chip surface mount LED in Cool White features 19 lumens of 10500K color temperature and a 120 degree viewing angle. Price listed is per 10 unit, Also available in Warm White and Pure White.



    Specifications

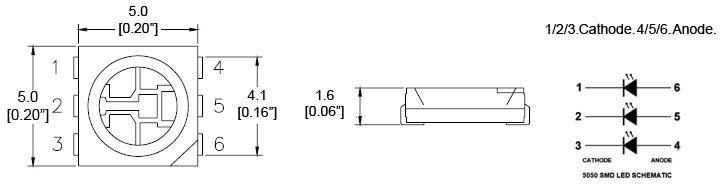

    package Dimensions



    Part Number: 5050LEDs-CW
    Cool White
    absolute maximum ratings: (TA=25°C)
    PARAMETER SYMBOL Rating UNIT
    Power Dissipation PD 3x120 mW
    Continuous Forward Current IF 3x20 mA
    Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) IFM 3x100 mA
    Reverse Voltage VR 5 V
    Operating Temperature TA -20~+80 °C
    Storage Temperature Tstg -40~+85 °C
    Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)

    Optoelectric Characteristics
    PARAMETER SYMBOL MAX TYP UNIT TEST
    View Angle of Half Power 2ø1/2 -- 120 Degree --
    Forward Voltage VF 3.4 3.2 V IF=20mA
    Dominant Emission Wavelength -- -- Cool 10500K -- --
    Luminous Intensity -- -- 19 lm --
    Millicandela Output IV -- 6000 mcd IF=20mA
