LED Strip Lights - 24V LED Tape Light with LC2 Connector - 145 Lumens/ft.

Price:   $39.95

  • Model: fls-3528s60x24v-20
  • Shipping Weight: 0.17kg
  • 500 Units in Stock

(0 reviews)

Please Choose:

  • Cool White
  • Natural White
  • Warm White
  • Blue
  • Green
  • Yellow
  • Red
  • Pink
  • Purple
(complete orders today,deliverd around 01/05/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    MEAN WELL Constant Current LED Driver - PCD-16 Series - 16W
    $19.95
    Mean Well LED Switching Power Supply - LPF Series Constant Current LED Driver with Built-in PFC - 16-60W - 24V DC
    $27.95
    Mean Well LED Power Supply - LPF Series Constant Current LED Driver with Built-in PFC - 90W - 24V DC
    $39.95
    Mean Well LED Power Supply - LPF Series Constant Current LED Driver with Built-in PFC - 40W - 24V DC
    $29.95
    • Details
    • Reviews
    • Tags
    • FAQ

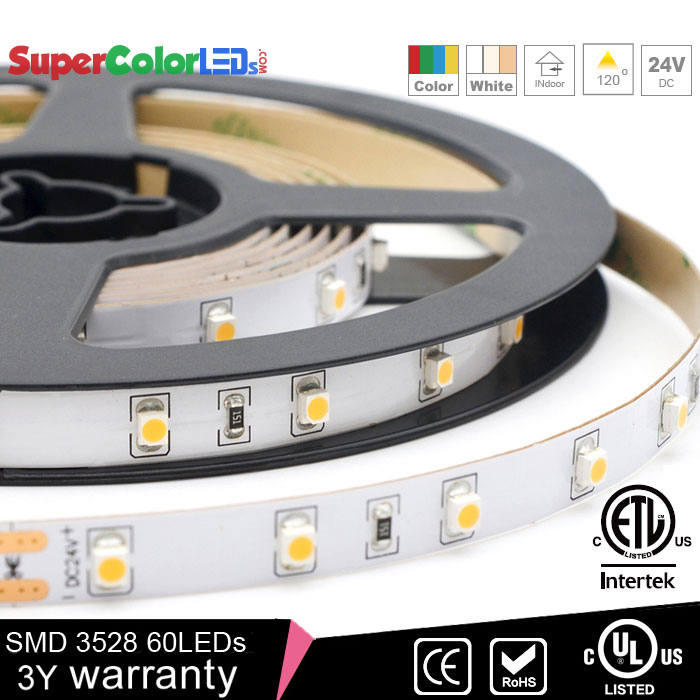

    This flexible LED light strip is great for cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited. The single-color strip light has 24 VDC operation and can be used in longer runs than 12V strips. Using 300 LEDs, the flexible light strip emits 145 lumens of powerful illumination per foot. The 16.4' LED light strip is available with a white finish and can be easily cut into 6-LED segments and installed with its peel-and-stick adhesive backing. Attached LC2 locking connectors let you easily power and join multiple strips. This strip light is designed to last 30,000 hours and is available in natural white and warm white colors. Also available in a 12 VDC version.







     Specifications

    Beam Angle 120 degree Connection Type LC2 Connector, LC2 Female, LC2 Male
    Current Draw @ Operating Voltage  1070mA Current Draw per Foot 65mA
    Efficacy 93 lm/w IP Rating Non-Weatherproof
    Intensity 2400 Lumen LED Brand Epistar
    LED Lifetime 30000 Hours LED Type 3528 SMD
    LEDs per Segment 6 Lumen Per Foot 145 lm/ft
    Max Run  2 Number of LEDs in Unit 300 LEDs
    Operating Voltage Range 24 VDC Polarity Sensitive Yes
    Power Consumption 26 Watts SMD Density 18 SMDs/ft.
    Segment Length 3.94in Special Features Plug and Play
    Standards And Certifications ISA Approved, ETC, RoHS Compliant, UL Listed Strip Width 8mm (0.31in)
    Suitable for Vehicles No Total Length 196.9in (16.40ft)
    Type Flexible Light Strips UL File Number E488331
    Wattage per Foot 1.56 Watts Wire Length 20in(50.8cm)
    Dimmable Yes
    Package Weight: 6oz (0.17kg)
    Package Dimensions: 7.5" (19cm) x 7.5" (19cm) x 1" (3cm)
    All specifications are subject to change without notice.

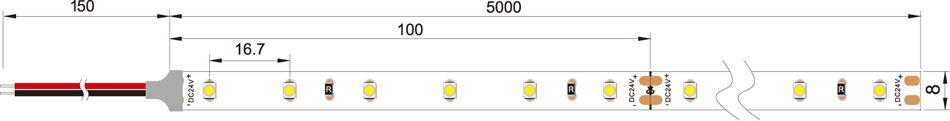

    60Leds/M 3528 24V LED Strip Lights



    Installation



    1. Easy installation with double adhesive tape.
    2. Don't press the LED lights heavily when fixing the strip.
    3. Fix the one end of strip first and press the edge smoothly to another end.
    4. The angel between the surface and the strip being pulled should not exceed 20 degrees.

    5. Minimum bending diameter is 6cm(2.36in).
