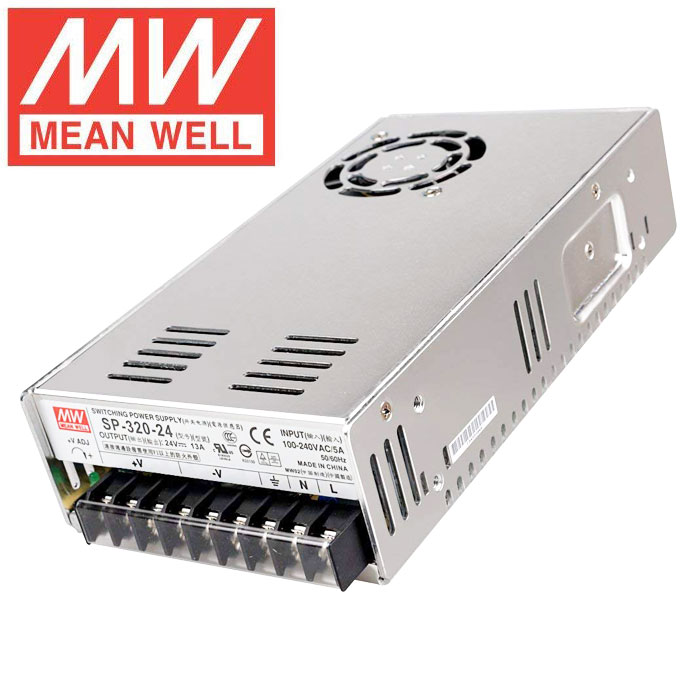

Mean Well LED Switching Power Supply - SP Series 100-750W Enclosed Power Supply with Built-in PFC - 24V DC

Price: Starting at: $54.95

Model: SP-XXX-24
Shipping Weight: 0.55kg
1965 Units in Stock

(0 reviews)

Please Choose:

Select Power Cord:

Without Power Cord
With Power Cord ( +$4.00 )

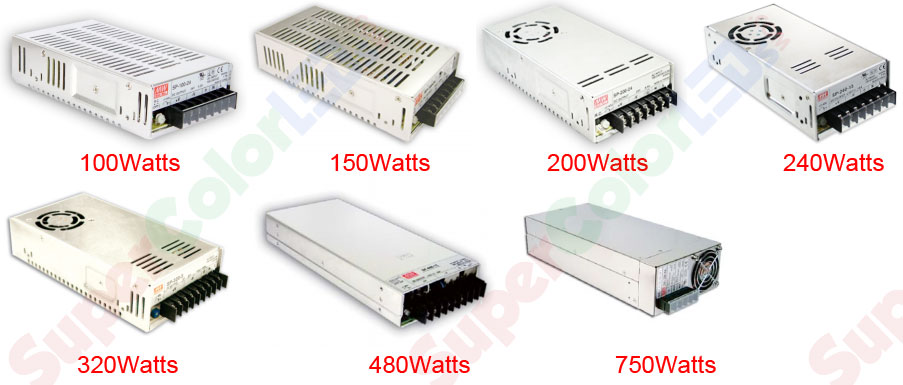

Select Wattage:

100 Watts
150 Watts ( +$12.00 )
200 Watts ( +$25.00 )
240 Watts ( +$35.00 )
320 Watts ( +$55.00 )
480 Watts ( +$125.00 )
750 Watts ( +$235.00 )

(complete orders today,deliverd around 17/05/2024)

Shipping time

About 2-3 days.

FREE NEXT DAY DELIVERY

on orders over $200

Payment

Paypal,Western Union

Email us

info@supercolorleds.com

New Products

120W LED Wall Pack - 13600 Lumens - 400W Metal Halide Equivalent - 5000K/4000K

$106.95

120W LED Wall Pack - 14400 Lumens - 600W HPS Equivalent - 5000K/4000K

$126.95

60W LED Wall Pack with Photocell - 7200 Lumens - 250W Metal Halide Equivalent - 5000K/4000K

$96.95

120W LED Wall Pack with Photocell - 13600 Lumens - 400W Metal Halide Equivalent - 5000K/4000K

$116.95

Details
Reviews
Tags
FAQ

* Universal AC input / Full range
* Built-in active PFC function, PF>0.93
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Built-in constant current limiting circuit
* Remote ON-OFF control(Optional)
* LED indicator for power on
* 100% full load burn-in test
* Fixed switching frequency at PFC:67KHz PWM:134KHz
* 3 years warranty
* Made by Mean Well
* UL 60950-1 approved for safety when used with 3-prong grounded AC cord (not included)

Specifications

Connection Type	Screw Terminals	Dimmable	No
Input Frequency Range	47 ~ 63 Hz	Volts	24 VDC
IP Rating	Non-Waterproof	Output Channels	Single
Output Voltage DC	24 VDC	Built-in PFC Function	Yes
Power Supply Type	Enclosed	Standards And Certifications	RoHS Compliant, UL Recognized
Type	Power Supplies	UL Compliance Number	UL 60950-1
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable. All specifications are subject to change without notice.

Manuals & Resources

Mean Well SP Series 100W Technical Drawing

Mean Well SP Series 150W Technical Drawing

Mean Well SP Series 200W Technical Drawing

Mean Well SP Series 240W Technical Drawing

Mean Well SP Series 320W Technical Drawing

Mean Well SP Series 480W Technical Drawing

Mean Well SP Series 750W Technical Drawing
