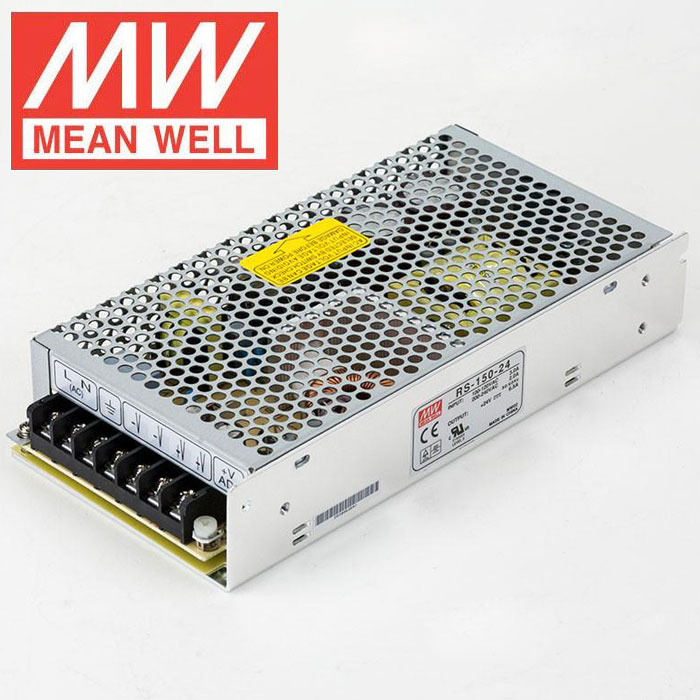

Mean Well LED Switching Power Supply - RS Series 150W Enclosed LED Power Supply - 24V DC

Price: Starting at: $47.95

Model: RS-150-24
Shipping Weight: 0.59kg
1965 Units in Stock

(0 reviews)

Please Choose:

Select Power Cord:

Without Power Cord
With Power Cord ( +$4.00 )

(complete orders today,deliverd around 09/09/2026)

Shipping time

About 2-3 days.

FREE NEXT DAY DELIVERY

on orders over $200

Payment

Paypal,Western Union

Email us

info@supercolorleds.com

New Products

LED Light Strips - 24V Variable Color Temperature Flexible LED Tape Light with 36 SMDs/ft., 2 Chip SMD LED 3528

$96.95

High CRI LED Strip Light - 24V LED Tape Light w/ LC2 Connector - High Density - 513 Lumens/ft.

$116.95

80W LED Wall Pack with Photocell - 11600 Lumens - Glass Lens - 400W Metal Halide Equivalent - 5000K/4000K

$119.95

LED Strip Lights - 24V LED Tape Light with LC2 Connector - 145 Lumens/ft.

$39.95

Details
Reviews
Tags
FAQ

* Selectable AC Input Range (88-132 / 176-264 VAC)
* Short circuit/Over load/Over voltage Protection
* Cooling by free air convection
* 100% full load burn-in
* 105°C long life electrolytic capacitors
* Withstand 300VAC surge input for 5 seconds
* High operating temperature up to 70°C
* Withstand 5G vibration test
* High efficiency
* High Reliability: >200k Hours MTBF
* 3 year warranty

Specifications

Connection Type	Screw Terminals	Dimmable	No
Input Frequency Range	47 ~ 63 Hz	Input Voltage	176 ~ 264 VAC, 88 ~ 132 VAC
Input Voltage DC	248 ~ 373 VDC	Operating Temperature	-25~+70 °C
Output Channels	Single	Output Rated Current	6500mA
Output Voltage DC	24 VDC	Built-in PFC Function	No
Power Supply Type	Enclosed	Standards And Certifications	RoHS Compliant, UL Recognized
Storage Temperature	-40~+70 °C	Type	Power Supplies
UL Compliance Number	UL 60950-1	Volts	24 VDC
Watts	150 Watts
Package Weight: 1lb 7.5oz (0.67kg)
Package Dimensions: 8" (20cm) x 2.71" (7cm) x 2.71" (7cm)
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable. All specifications are subject to change without notice.

Manuals & Resources

Download 24V 150Watts Spec Sheet
