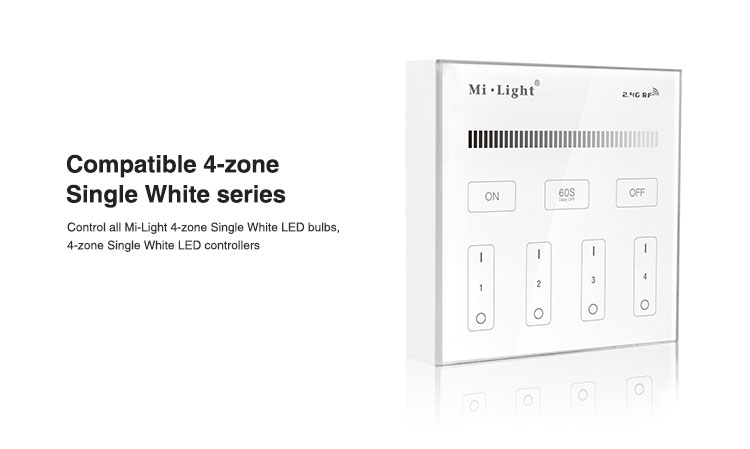

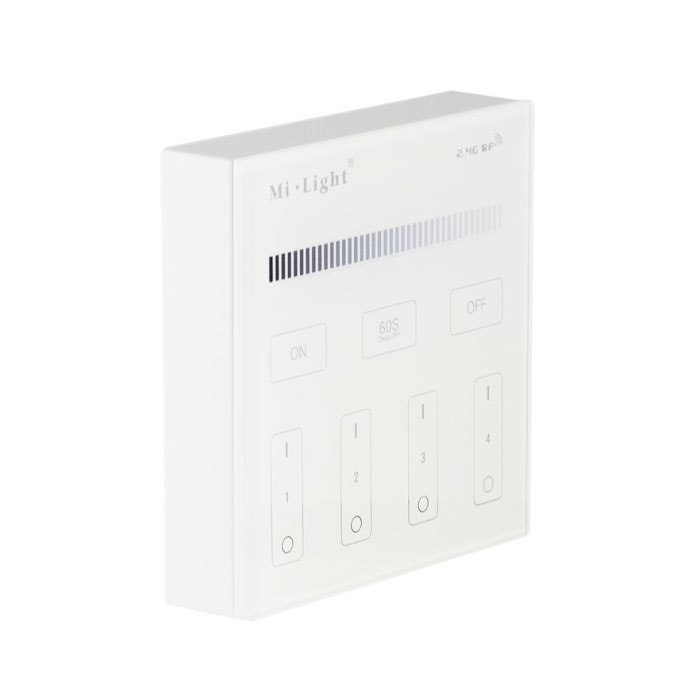

4-zone Brightness Dimming Smart Touch Panel Remote Controller - Mi-light B1 Series

Price:   $21.95

  • Model: DIM-B1
  • Shipping Weight: 0.15kg
  • 99999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 14/05/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    8mm Single Color LED Strip Lights CPS Adapter Cable Clamp,Cables Connect Adapter and LED Strips, Seamlessly Extend Flexible Light Strip
    $1.89
    LED Strip Lights Connector Terminal 3 Pin 10mm Waterproof IP65 and IP54 for Dimmable, Dual Color, WS2812,WS2811 Digital Tape Light,Pack of 10(No Wire)
    $14.95
    LED Strip to Strip Connector 8mm 2 Pin for WATERPROOF Single Color Strip Light. Pack of 10
    $12.95
    LED Strip Connector Terminal 3 Pin 10mm Non-Waterproof IP20 for Dimmable, Dual Color, WS2812,WS2811 Digital Tape Light,Pack of 10(No Wire)
    $14.95
    • Details
    • Reviews
    • Tags
    • FAQ

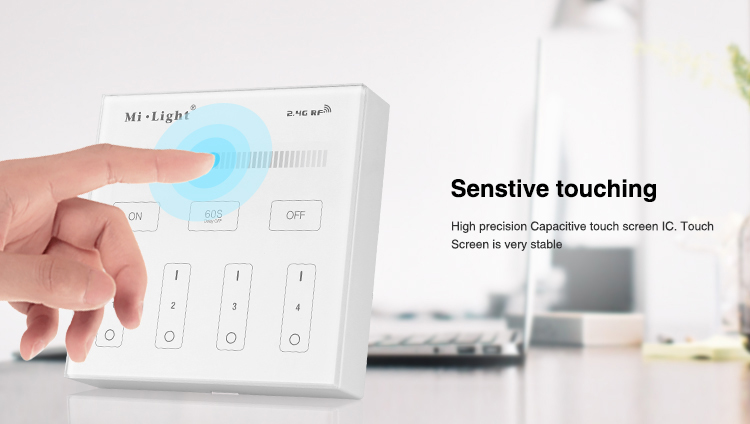

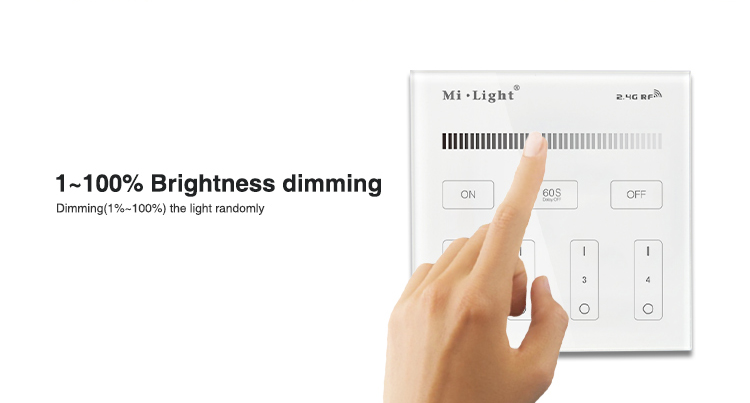

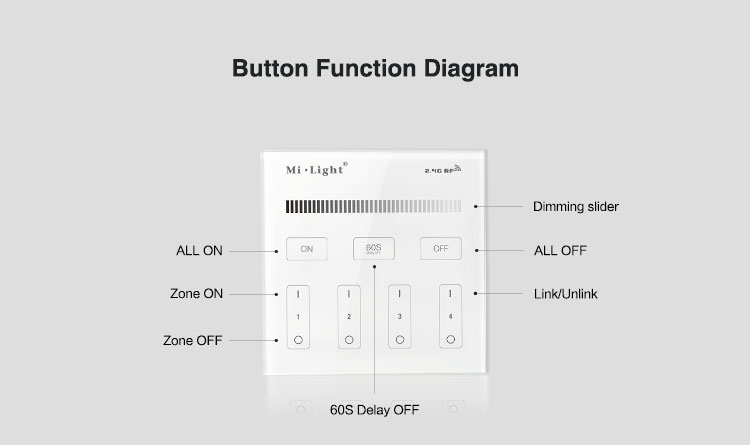

    Mi-Light wall panels, differ in their design depending on the model presented. A coherent control element is the control element, which corresponds to a different function. In the centre of the wall panel, there is a button for turning on / off the connected LED illumination, brightness and colour temperature for the CCT controllers, using the touch control slider. The colour scheme of the RGB, RGB + W or RGB + CCT multicolour driver is the same, the change is achieved through the discs on which the individual colours or touch sliders are located.



    Mi-Light 4-zone brightness dimming smart panel B1 specification



    Application For monochrome installations (single colour)
    Maximum output current Dependent on the receiver used

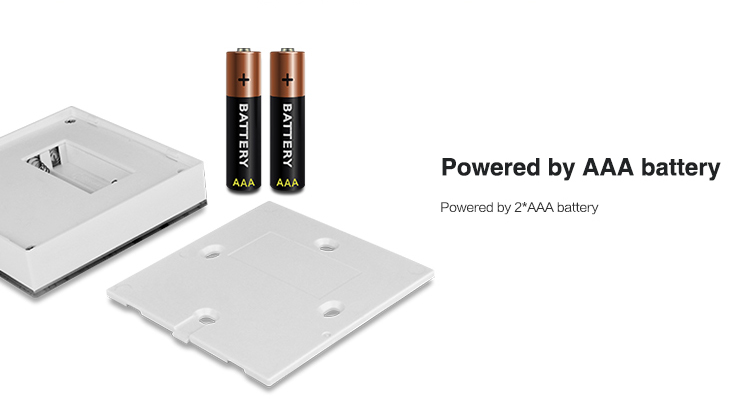

    Powered by 2 x 1,5V AAA batteries (not included)
    The number of zones/channels supported 1 to 4
    Modulation method GFSK
    Controlling method Radio

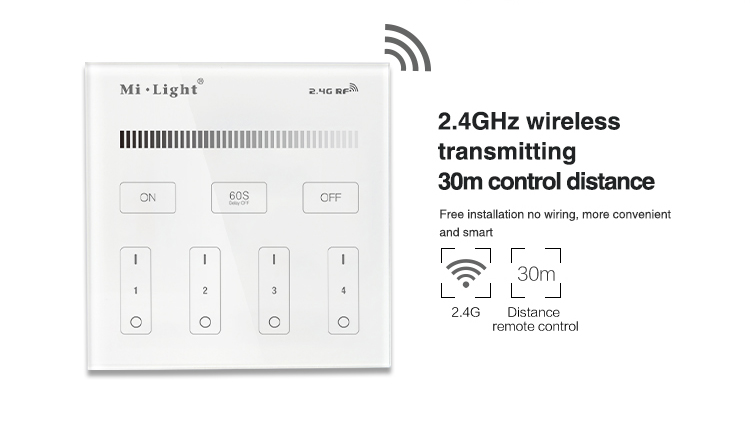

    Controlling range up to 30 meters in open area
    Control frequency 2,4GHz
    Power consumption in operating mode 5,5dBm
    Power consumption in standby mode 10uA
    Working temperature -20 – 60℃

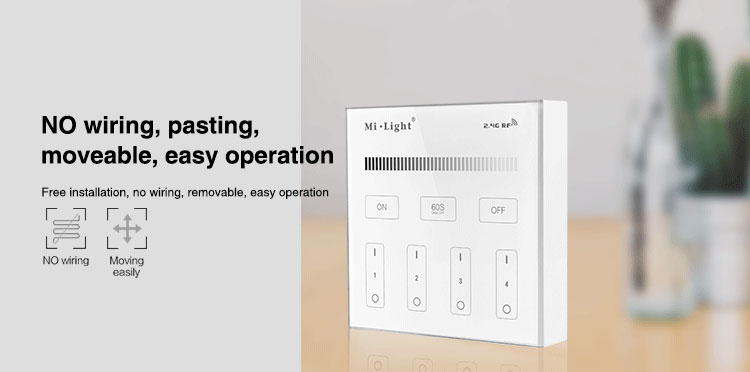

    Type of installation Surface
    Colour White
    Ingress Protection IP20

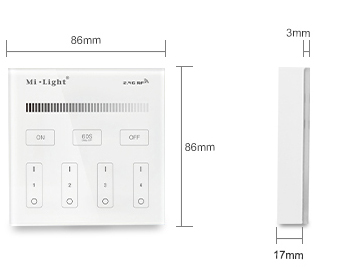

    Dimensions[mm] L86 x W86 x H21
    Certification RoHS, CE
    Warranty 2 years



    Table 1. Compatible devices with Mi-Light 4-zone brightness dimming smart panel B1



    Product code Product name
    FUT036  Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036
    LS4  Mi-Light 0/1~10V dimming driver LS4
    IBOX1  Mi-Light WiFi iBox smart light iBox1
    IBOX2  Mi-Light WiFi controller iBox2

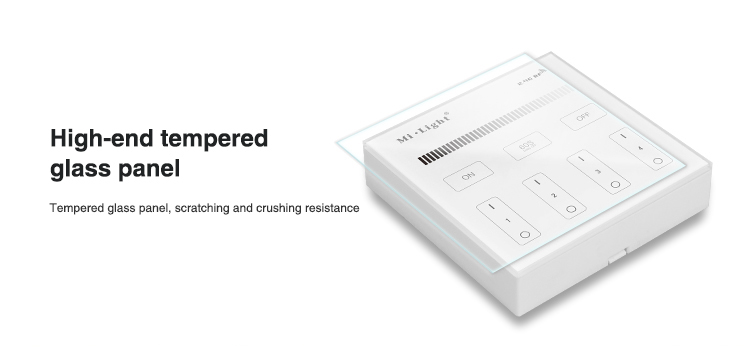

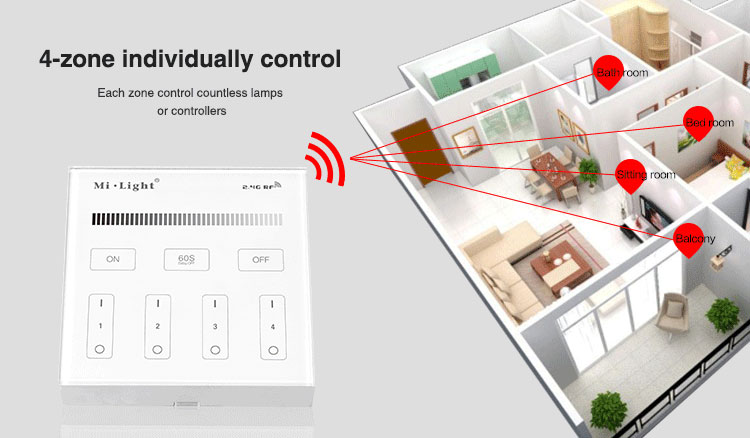

    Radio wall dimmer - 4 MONO -Mi-Light is a wireless wall panel that can be controlled by the brightness of the connected monochrome LED strip. The dimmer allows an individual access to each zone, which can be controlled via a glass wall panel. The device is designed for surface mounting. The wall panel is powered by two 1.5V AAA batteries (not included).
