Mi-Light 8-Zone Smart Panel Remote Controller with RGB+CCT Series - B8

Price:   $39.95

  • Model: ML-RGBCCT-B8
  • Shipping Weight: 0.15kg
  • 998 Units in Stock

(0 reviews)
(complete orders today,deliverd around 18/05/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Color Changing LED Flood Lights - MiLight 10 Watt RGBWW Flood Fixture
    $69.95
    MiLight 4-Zone RGB+CCT Smart Touch Panel Remote Controller For LED Strip Lights - T4 Series
    $29.95
    Color Changing LED Flood Lights - MiLight 20 Watt RGBWW Flood Fixture
    $99.95
    8-zone RGB+CCT remote controller - MiLight FUT089
    $18.95
    • Details
    • Reviews
    • Tags
    • FAQ

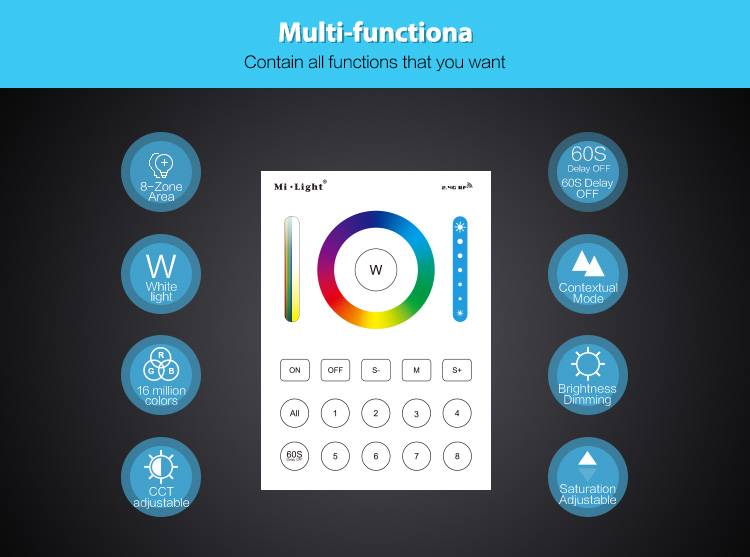

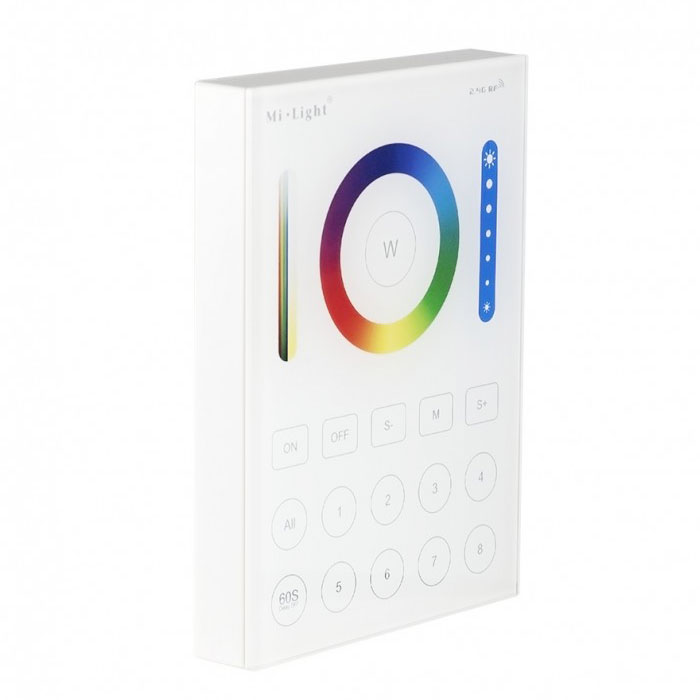

    Wall-mounted LED controller - 8 zone - RGB+CCT - Mi-Light B8 is a wireless wall panel for managing brightness with the ability to control a given RGB colour and CCT colour temperature for multi-colour devices with varying colour temperatures. RGB + CCT receiver/bulb or devices included in "Table No. 1." The controller allows individual access for each of the eight available zones that can be controlled by the glass wall panel. AAA, but with the use of an additional adapter, it is possible to connect it directly to the AC90-120V or AC180V-240V network. The device is designed for surface mounting or flush mounting when using an adapter.

    Mi-Light 8-zone smart panel remote controller B8 specification



    Application For MONO/CCT/RGB/RGBW/RGB+CCT installations
    Output voltage Depends on the receiver used

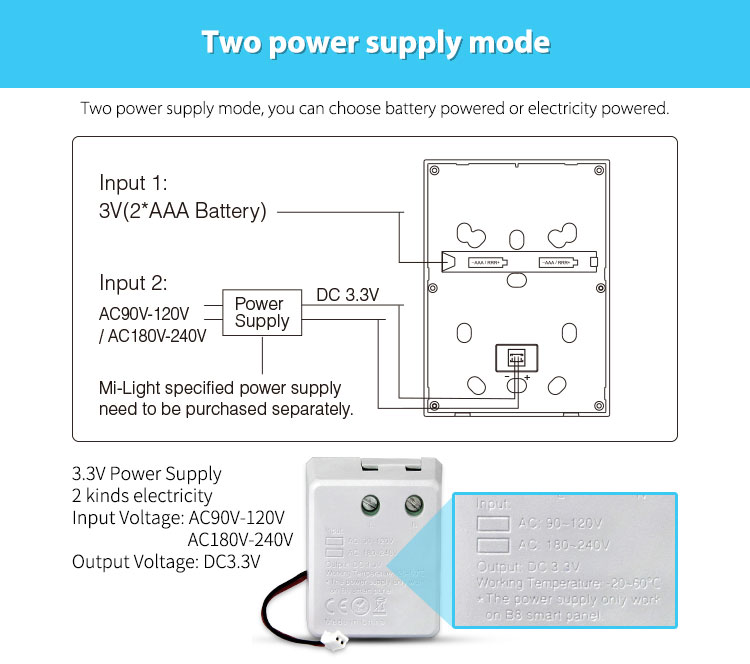

    Input voltage Battery 2x 1.5V AAA or using adapter - DC3.3V

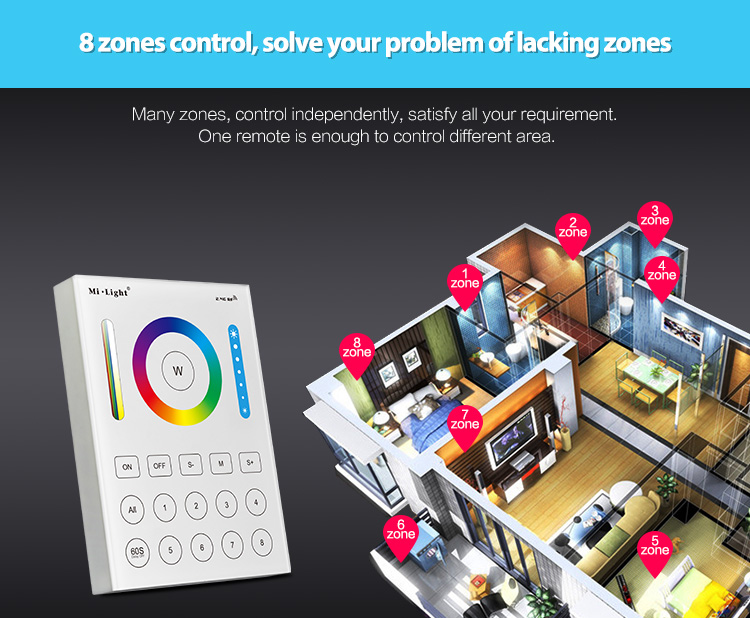

    The number of zones/channels supported 1-8
    Modulation method Radio

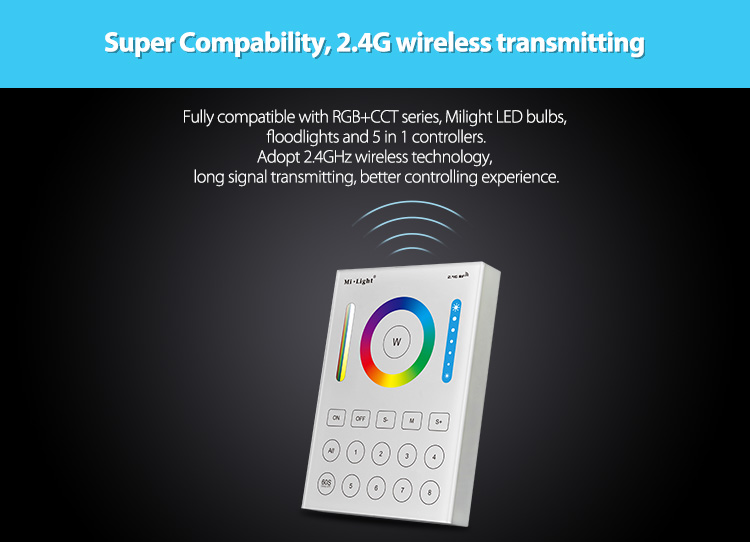

    Controlling method 2400-2483.5MHz
    Controlling range 30m
    Modulation method GFSK

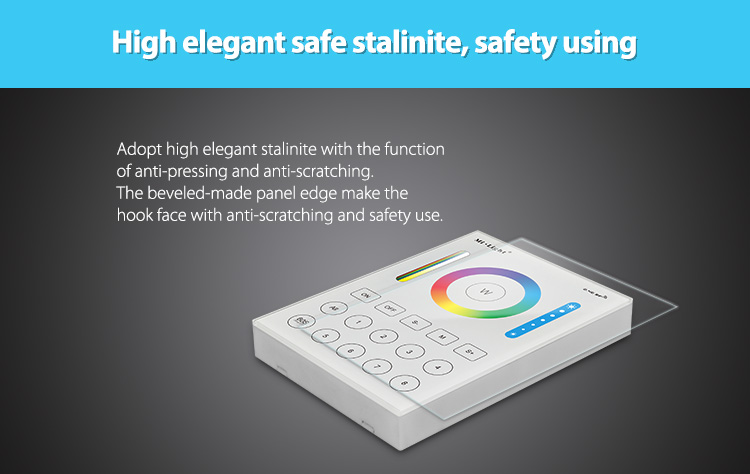

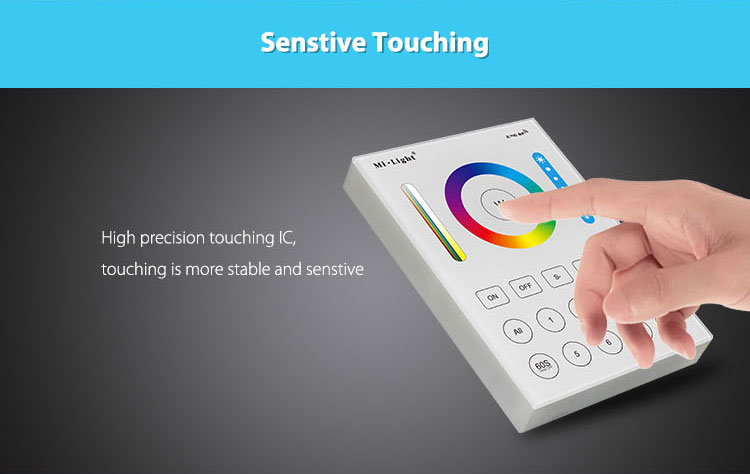

    Glass panel Yes
    Working temperature -20 – 60℃

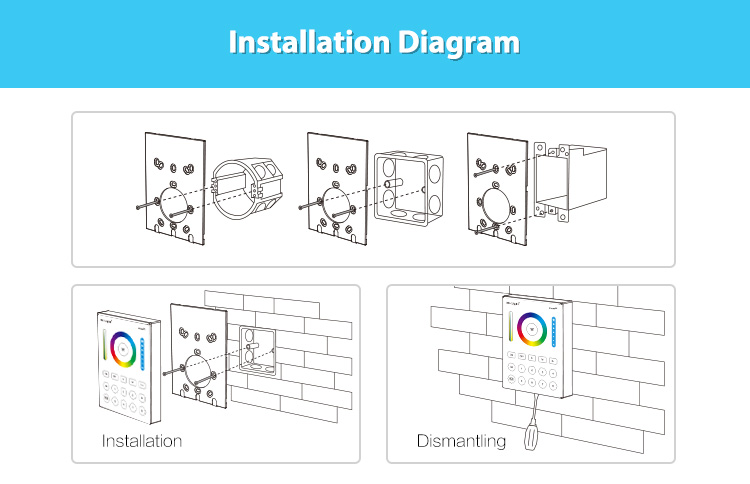

    Type of installation Surface (batteries) or flush (mains)
    Colour White
    Ingress Protection IP20

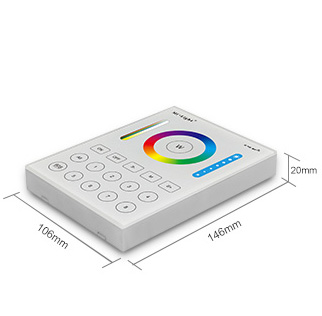

    Dimensions[mm] L146 x W106 x H20
    Certification RoHS, CE
    Warranty 2 years



    Table 1. Compatible devices with Mi-Light 8-zone smart panel remote controller B8



    Product code Product name
    LS2  Mi-Light 5 in 1 smart LED strip controller LS2
    FUT105  Mi-Light 12W RGB+CCT LED light bulb FUT105
    FUT062  Mi-Light 9W RGB+CCT LED ceiling spotlight FUT062
    FUT069  Mi-Light IP54 waterproof 15W RGB+CCT LED downlight FUT069
    FUTT05  Mi-Light 10W RGB+CCT LED floodlight FUTT05
    IBOX1  Mi-Light WiFi iBox smart light iBox1
    IBOX2  Mi-Light WiFi controller iBox2



    Table 2. Dynamic programs for the Mi-Light 8-zone smart panel remote controller B8



    Number For single colour/dual white installation For RGB/RGBW installation Speed change Brightness change
    1 Smooth dimming/brightening of white colour Smooth change between all colours Yes Yes
    2 Jumping dimming/brightening of white colour Smooth pulsation of white colour Yes Yes
    3 Fast flash of white colour Smooth change between RGB colours Yes Yes
    4 Smooth pulsation of white colour with three flashes Jumping change of seven colours Yes Yes
    5 N/A Jumping change of random colours Yes Yes
    6 N/A Smooth pulsation of red colour with three flashes Yes Yes
    7 N/A Smooth pulsation of green colour with three flashes Yes Yes
    8 N/A Smooth pulsation of blue colour with three flashes Yes Yes
    9 N/A Smooth pulsation of white colour with three flashes Yes Yes





    Click here to buy: 3.3V DC Power Supply For B8 Smart Panel Controller
