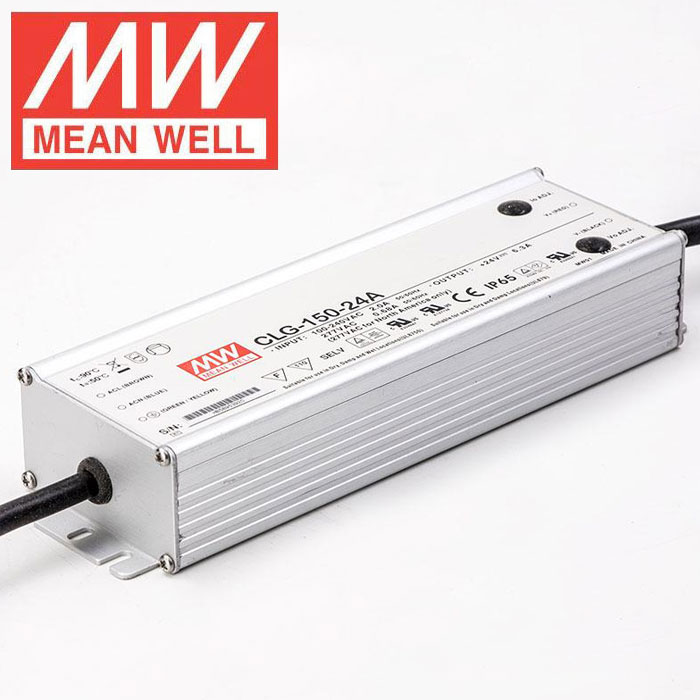

Mean Well LED Switching Power Supply - CLG Series 150W Single Output LED Power Supply - 24V DC - A-Type

Price: Starting at: $96.95

Model: CLG-150-24A
Shipping Weight: 1.15kg
1965 Units in Stock

(0 reviews)

Please Choose:

Select Power Cord:

Without Power Cord
With Power Cord ( +$4.00 )

(complete orders today,deliverd around 09/06/2026)

Shipping time

About 2-3 days.

FREE NEXT DAY DELIVERY

on orders over $200

Payment

Paypal,Western Union

Email us

info@supercolorleds.com

New Products

LED Light Strip Connector,8mm Board-to-Board Tape Light Splicer 2 Pin for Single Color, IP20 Non-Waterproof Middle Connection, Pack of 10 PCS

$12.95

LED Strip Connector 3 Pin 10mm For Waterproof Dimmable Strip Light,Dual Color Tape Light Gapless Connector Strip to Strip Middle Joint, Pack of 10

$14.95

Dimmable LED Strip Connector 3 Pin 10mm Board to Board, Gapless Connector for Dual Color and Digital Flex Strip Light Non-Waterproof, Pack of 10

$13.95

LED Strip Connector 2 Pin for 10mm Single Color Waterproof IP65/IP54, DIY Lead Connector Wire for Strip to Power / Dimmer or Board-to-Board Jumper,10 PCS Pack(No Wire)

$12.95

Details
Reviews
Tags
FAQ

* Universal AC Input (up to 295 vac)
* Short Circuit / Overload / Over Voltage / Over Temperature Protection
* Built-in active PFC function
* IP65 design for indoor or outdoor installations
* High Reliability with 303k Hours MTBF
* Suitable for LED lighting and moving sign applications
* Constant Current / Constant Voltage Mode
* Output voltage and constant current level can be adjusted through internal potentiometer (accessible through rubber stoppers).
* 3 Year Warranty in North America
* Made by Mean Well

Specifications

Connection Type	Pigtail	Dimensions	222.2mm x 68mm x 38.8mm
Dimmable	No	Input Frequency Range	47 ~ 63 Hz
Input Voltage	90 ~ 295 VAC	IP Rating	Weatherproof IP65
Operating Temperature	-30~+70 °C	Output Channel Type	Single
Output Rated Current	6300mA	Output Voltage DC	24 VDC
PFC Function	Yes	Power Supply Type	Enclosed
Standards And Certifications	RoHS Compliant, UL Recognized	Type	Power Supplies
UL Compliance	UL 1012, UL 60950-1, UL 8750, UL 879	UL File Number	E127738, E334687
Volts	24 VDC	Wattage	151.2 Watts
Wire Length	12in(30.5cm)
Package Weight: 2lb 4.8oz (1.04kg)
Package Dimensions: 5" (13cm) x 2.5" (6cm) x 2.5" (6cm)
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable. All specifications are subject to change without notice.

Manuals & Resources

Download 150 Watts Spec Sheet

Accepted Forms of Payment

Credit Card

We accept Visa, MasterCard, Discover and American Express. Credit card information is never stored anywhere on our premises or online server. Credit card information is transmitted securely using 256-bit encryption.

PayPal

Select "PayPal" on the order form. Your order will not be processed or shipped until payment is received and verified. You will not be able to modify your order once it has been submitted.

Shipping

If you placed an order and want to know its status, please check your email for tracking information. If you need assistance, send us an email (SuperColorLEDs@gmail.com), and make sure "Order Status" is selected in the inquiry drop-down.

We make every effort to ship all orders within 24 hours.

Same-day shipping if order is placed by 3 p.m. CDT.
Next-day shipping (excluding weekends) if order is placed after 3 p.m. CDT.
Monday shipping if order is placed on the weekend.
**An email is sent to confirm that your order has been received and is being processed. Another email will be sent to you with tracking information when your order ships.

Overnight & 2-Day Shipping/Saturday Delivery

Overnight and 2-day shipping options are only available to destinations within the USA. Shipments are sent via UPS and are delivered in 1-2 business days (not weekends).

Returns and Exchanges
We have a hassle-free 30-day return policy.

Warranty

All LED Products: 2-Year Replacement Limited Warranty
Super Color LEDs carries a minimum 2-year limited warranty on all LED products for manufacturing defects or product failures. Select products may carry more than a 2-year warranty, which will be documented on the product page. If you experience an issue with a product, a technician from our support team may be able to diagnose the issue. Technical support is available by phone, chat and email. The warranty is valid and only applies when Super Color LEDs products are properly used for their intended applications.

Lifetime Warranty
Select Products: Limited Lifetime Warranty
Super Color LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If an LED or other internal component fails, return the product to Super Color LEDs, Inc. for inspection. If, after inspection, Super Color LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a product of equal value may be substituted. Warranties are non-transferable. Warranty terms and policies are subject to change without notice.

Frequently Asked Questions

Q: What is the importance of UL Listed?

UL is an acronym for the Underwriters Laboratories. They are an independent product safety certification organization. A good summary used by UL is, "a not-for-profit organization dedicated to public safety." This means you can install these LEDs in commercial spaces, industrial applications, and in your home with peace of mind.

Q: What is the product warranty?

We’re so happy with the quality of our product, we offer a 5-year warranty on all of our LED strips to all of our clients. The warranty on power supplies ranges from 2 to 7 years which is model dependent.

Q: What is the lifespan of your strip lights?

Our lights have been rigorously tested and have an expected lifespan of 50,000 hours before dropping to 70% luminosity. This means that if you were to use your lights 12 hours a day, every day, the lights would be expected to last longer than 10 years. Even after that time has elapsed, the lights will maintain a brightness of 70%. Higher-output strips require a heat sink to reach the expected lifespan and beyond.

Q: What is color temperature?

The color of light can be quantified by referring to its color temperature. White light is measured in Kelvins (K). Most white lights fall in a spectrum between 1800K and 6200K. When getting close to 3000K, the light is noticeably warmer. On the other end of the spectrum, the lights have a blue-ish tint and cooler tone when nearing 6500K.

Q: Which color temperature should I choose?

Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have. What other color lights will be present? What material and color are the materials you wish to light? We can help you choose!

Q:What are lumens (lm)?

This is a quantifiable amount of light produced by an LED strip or other light-producing product. This is one way we can measure light output.
