MiLight 4-Zone RGB/RGBW Smart Touch Panel Remote Controller For LED Strip Lights - T3 Series

Price:   $29.95

  • Model: RGB-T3
  • Shipping Weight: 0.15kg
  • 865 Units in Stock

(0 reviews)

Please Choose:

  • AC90~110V
  • AC180V-240V
(complete orders today,deliverd around 22/04/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Mi Light iBox2 2.4G WiFi iBox Controller Hub,smart phone APP Long Distance Control,Compatible with IOS,Android 4.3 or above
    $32.95
    8A 12~24 Volt DC Switch Brightness Control Single Color LED Dimmer
    $9.95
    5~24VDC Single Color LED Controller with Dynamic Modes - 11 Key RF Wireless Remote
    $6.95
    Mi Light WiFi Smart Light 16 Millions of Colors Compatible with IOS and Android 4.3 or Above Mobile Tablets Wifi Bridge Between LED Controller for General Decorative Accent Lighting
    $32.95
    • Details
    • Reviews
    • Tags
    • FAQ

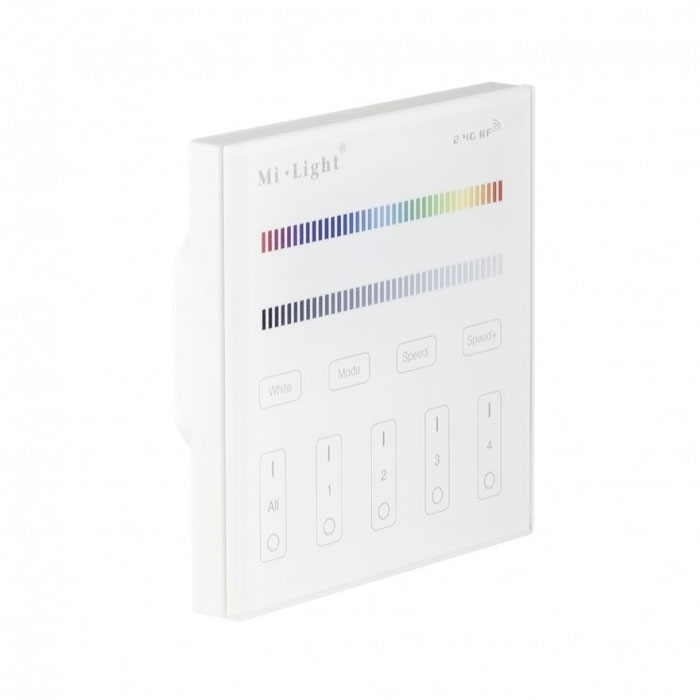

    Wall-mounted - 4 zone LED RGB /RGB+W Mi-Light is a wireless wall panel for brightness management with the ability to control a given RGB colour for multi-colour devices (e.g. RGB+W receiver) . The controller is powered by a AC90~110V or AC180~240V power supply.

    Mi-Light 4-zone RGB/RGBW smart panel remote controller T3 specification



    Application For multi-colour installations with extra white RGB+W
    Maximum output current Dependent on the receiver used
    Input voltage 180-240V AC

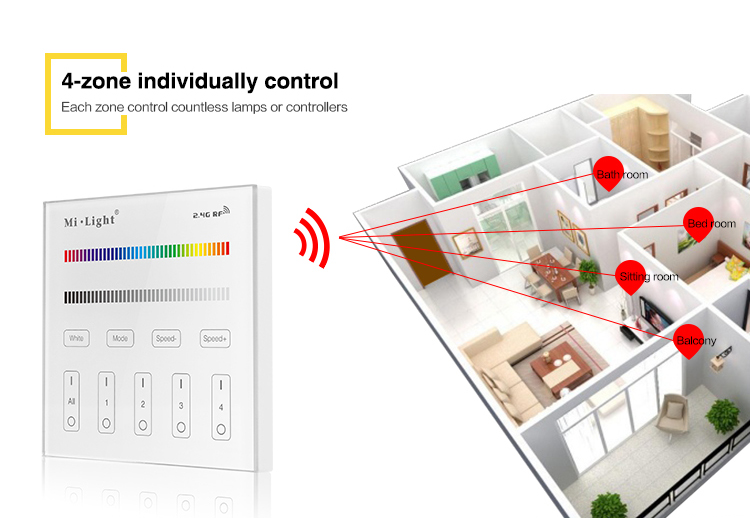

    The number of zones/channels supported 1 to 4
    Modulation method GFSK
    Controlling method Radio
    Controlling range up to 30 meters in open area
    Control frequency 2,4GHz
    Power consumption in operating mode 5,5dBm
    Power consumption in standby mode 10uA
    Working temperature -20 – 60℃
    Type of installation Flush mounting inside fi60 box
    Colour White
    Ingress Protection IP20
    Dimensions[mm] L86 x W86 x H33
    Certification RoHS, CE
    Warranty 2 years



    Table 1. Dynamic programs for the Mi-Light 4-zone RGB/RGBW smart panel remote controller T3



    Number Function Change speed Change brightness
     1 Smooth transition between all colours  Possible  Possible
     2 Single colour flashing  Possible  Possible
     3 Pulses between three basic colours and white  Possible  Possible
     4 Jumps between six colours and white  Possible  Possible
     5 Jumps between random colour sequences  Possible  Possible
     6 Red pulses complete with three flashes  Possible  Possible
     7 Blue pulse with three flashes  Possible  Possible
     8 Green pulse with three flashes  Possible  Possible
     9 Several sequences combined in one dynamic program  Possible  Possible

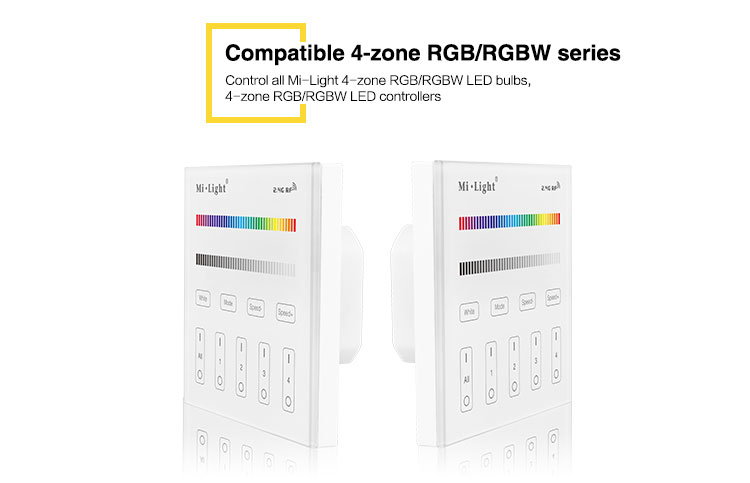

    Table 2. Compatible devices with Mi-Light 4-zone RGB/RGBW smart panel remote controller T3



    Product code Product name
    FUT037  Mi-Light 2.4GHz 4-zone RGB LED strip controller FUT037
    FUT038  Mi-Light 2.4GHz 4-zone RGBW LED strip controller FUT038
    FUT080  Mi-Light wine glass LED table lamp FUT080
    FUT080A  Mi-Light ring glass LED table lamp FUT080A
    FUT067  Mi-Light 12W RGBW LED downlight FUT067
    FUTT01  Mi-Light 35W RGBW LED floodlight FUTT01
    FUT010  Mi-Light 4W GU10 RGBW LED spotlight FUT010
    FUT013  Mi-Light 5W E14 RGBW LED light bulb FUT013
    FUT014  Mi-Light 6W RGBW LED light bulb FUT014
    FUT016  Mi-Light 9W RGBW LED light bulb FUT016
    FUT018  Mi-Light 5W GU10 RGBW LED spotlight FUT018
    FUT102  Mi-Light 9W JDR RGBW LED light bulb FUT102
    IBOX1  Mi-Light WiFi iBox smart light iBox1
    IBOX2  Mi-Light WiFi controller iBox2
