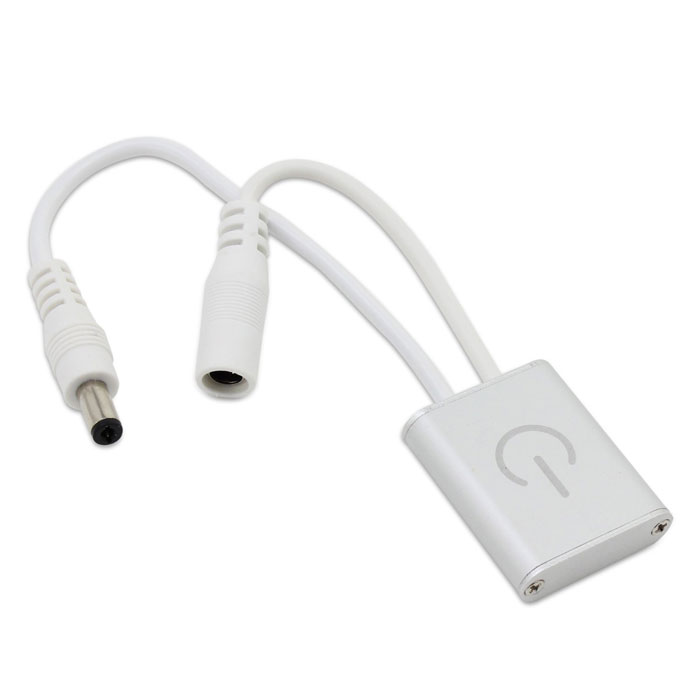

iTouch LED Dimmer Controller Touch Control 12~24 Volt DC White Metal

Price:   $8.95

  • Model: TCDP-3A
  • Shipping Weight: 0.05kg
  • 616 Units in Stock

(0 reviews)
(complete orders today,deliverd around 24/05/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    3W LED Recessed Light Fixture (40 Watt Equivalent), Aimable,LED Ceiling DownLight - 290 Lumens
    $13.95
    2 Pcs Adapter Cable + 2 Pcs 2-Pin 8mm Connector Kit for 3528/2835 Single Color LED Strip Lights, Gapless Strip to Strip, Cables Connect Adapter and LED Strips, Seamlessly Extend LED Strip Lights
    $4.95
    2835 SMD LED - 6000K Cool White Surface Mount LED w/120 Degree Viewing Angle - 10pcs
    $2.75
    5W LED Recessed Light Fixture (40 Watt Equivalent), Aimable,LED Ceiling DownLight - 460 Lumens
    $16.95
    • Details
    • Reviews
    • Tags
    • FAQ

    Universal single channel LED dimmer can turn on and off and dim any 12~24VDC LED products from 10 to 100% using Pulse Width Modulation (PWM) touch sensitive control. Maximum load is 3 Amps. Male and female 5.5mm barrel power connector for connecting in-line with our CPS series Power Supplies. Price for each.



    Specification
    Input voltage: DC 12V/24V
    Max load input current: 3A
    Output channel: 1 channel
    Input power: 36W at DC 12V input / 72W at DC 24V input
    Neight weight: 23g
    Product size: (L)30.8*(W)8.7*(H)38mm
    Cable: input 5.5*DC2.1, input cable 100MM, output cable 200MM

    Direction
    1) The finger touches dimmer metal body
    2) The touch time is less than 5 second, it is on/off switch function
    3) The touch time is more than 5 second, it is dimming function, the brightness will be raise to highest or fallen to lowest
    4) ON/OFF function: Touch the switch body and then release
    5) Dimmer Function: Touch the switch and hold. Brightness will adjusted automatically, either in Min-to-Max or Max-to-Min mode
