Dual Row LED Light Strips - 24V LED Tape Light with 72 SMDs/ft., 1 Chip SMD LED 3528 with LC2 Connector

Price:   $129.95  $98.95-24%

  • Model: 2fls-3528s240x24V-20
  • Shipping Weight: 0.28kg
  • 998 Units in Stock

Please Choose:

  • Cool White
  • Natural White
  • Warm White
  • Blue
  • Green
  • Yellow
  • Red
(complete orders today,deliverd around 23/05/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    4 Amp 3 Channel High Power LED DMX 512 Decoder
    $29.95
    Mini PIR Motion Sensor Switch w/ Built In Timer
    $12.95
    DMX 512 Decoder 24 Channel
    $239.95
    LED DMX 512 Decoder/RDM Controller - 8 Amp - 5 Channel - Digital Display
    $76.95
    • Details
    • Reviews
    • Tags
    • FAQ

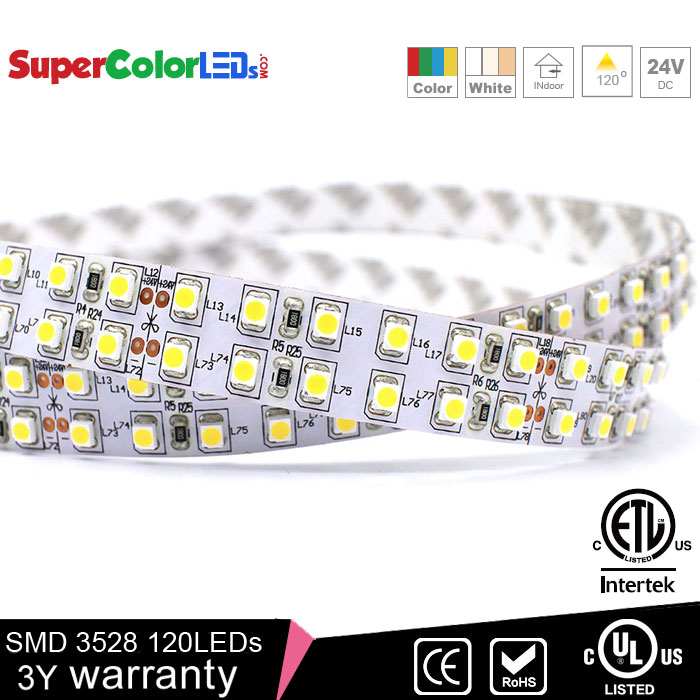

    This LED light strip is great for workbench lighting, desk lighting under hutches, cabinet lighting, under-cabinet lighting, task lighting, showcase lighting, bookshelf lighting, bias lighting, or for other indoor applications where space is limited. Using 1,200 LEDs (3528 SMD), the dual-row flexible light strip emits up to1,560 lumens of powerful illumination per meter. The 5m (16-3/8') non-weatherproof strip light can be easily cut into 12-LED segments and installed with its peel-and-stick adhesive backing.  Designed to last 40,000 hours, the single-color light strip has 24 VDC operation and is available in cool white (9500K), natural white (3900K), warm white (2850K), red, green, yellow and blue colors. Also available in a Waterproof IP65 led strip lights.







    Specifications

    2fls-3528s240x24V-20 series Flexible Light Strips use 3528SMD LEDs with 180° viewing angle - 24 Volt DC operation - (width: 14mm x height: 2.5mm)
    Beam Angle 180 degree Conductors 2
    Connector Type LC2 Operating Voltage Range 24 VDC
    Dimmable Yes IP Rating Non-Weatherproof
    LED Lifetime 40000 Hours LED Type 3528 SMD
    LEDs per Segment 12 Polarity Sensitive Yes
    Wattage Per Foot 4.5W Segment Length 1.98in
    SMD Density 72 SMDs/ft. Special Features Plug and Play
    Standards And Certifications ISA Approved, RoHS Compliant, UL Listed Strip Width 14.35mm (0.57in)
    Suitable for Vehicles No Type Flexible Light Strips
    UL File Number E488331 LED Quantity 1200LEDs
    Lumen Per Foot 475 lm/ft

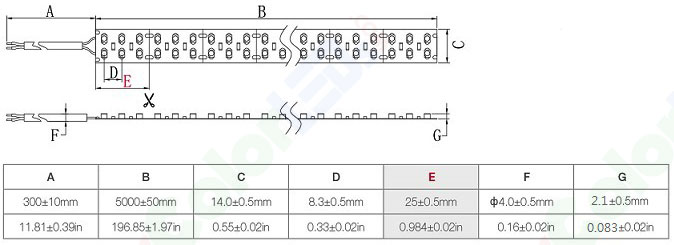

    Assembly & Measurement



    Installation



    1. Easy installation with double adhesive tape.
    2. Don't press the LED lights heavily when fixing the strip.
    3. Fix the one end of strip first and press the edge smoothly to another end.
    4. The angel between the surface and the strip being pulled should not exceed 20 degrees.

    5. Minimum bending diameter is 6cm(2.36in).
