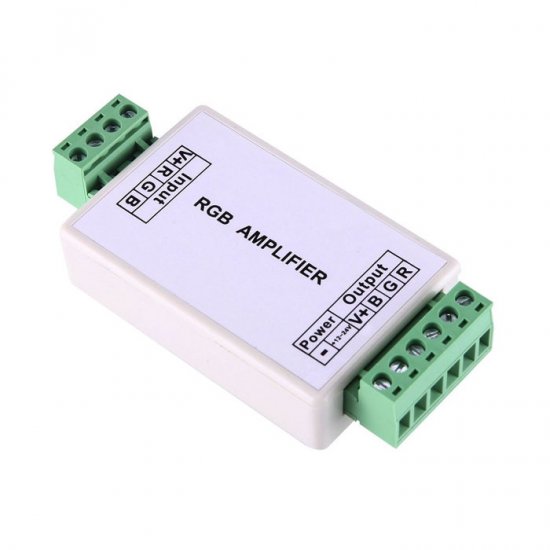

Double Board RGB Amplifier, DC 12-24V

Price:   $9.95

  • Model: RGB-APx4A
  • Shipping Weight: 0.16kg
  • 856 Units in Stock

(0 reviews)
(complete orders today,deliverd around 08/11/2026)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Mean Well LED Switching Power Supply - LPC Series 16-20W Single Output Constant Current LED Driver
    $11.95
    Mean Well LED Switching Power Supply - PWM Series 40-120W LED Power Supply - 12V Dimmable
    $39.95
    Mean Well LED Switching Power Supply - LPC Series 50-60W Single Output Constant Current LED Driver
    $17.95
    Mean Well LED Switching Power Supply - LPC Series 150W Single Output Constant Current LED Driver
    $39.95
    • Details
    • Reviews
    • Tags
    • FAQ

    RGB-APx4A series three channel RGB amplifier. Maximum 4 Amps per channel/12 Amps total. Increases the load capability and extend the signal of the universal RGB controllers. Required if exceeding the maximum load capability of any universal RGB controller. 12~24VDC operation.



    Specifications
    Supply Voltage: DC 12~24V
    Max load current: 4 Amps/channel (12 Amps total)
    Output: 3 Channel
    Static power consumption: < 1 Watt
    Output Power: 144 Watts
    Function: Amplify RGB Signals using PWM
    Product size: (L)98 Χ (W)45 Χ (H)18 mm
    Net Weight: 100g
    Working temperature: -20~60°C
