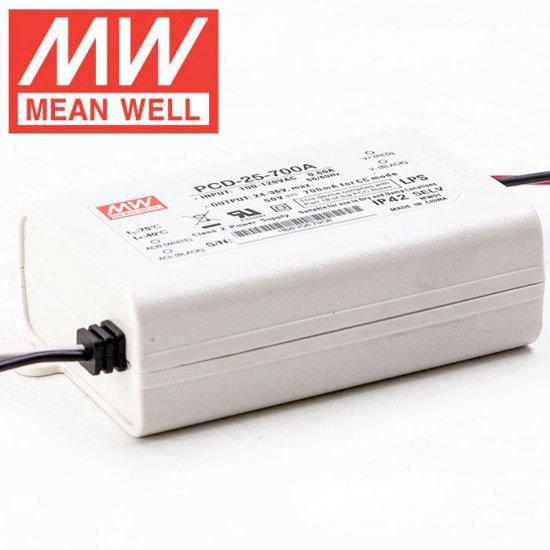

Mean Well LED Switching Power Supply - PCD Series 20-25W AC Dimmable LED Constant Current Driver - A-Type

Price: $22.95

Model: PCD-25-XXXA
Shipping Weight: 0.08kg
1965 Units in Stock

(0 reviews)

Please Choose:

Select Output Rated Current:

350 mA
700 mA
1050 mA
1400 mA

(complete orders today,deliverd around 24/07/2026)

Shipping time

About 2-3 days.

FREE NEXT DAY DELIVERY

on orders over $200

Payment

Paypal,Western Union

Email us

info@supercolorleds.com

New Products

5050 SMD LED - 590nm Yellow Surface Mount LED w/120 Degree Viewing Angle - 10PCS

$4.59

Mi Light 4 Watt MR16 Color Changing LED Spotlight WiFi Lamp RGB +CCT,Dimmable - FUT104

$16.95

35W LED Corn Light Bulb, E26 Screw Base 3600 Lumens CRI85 360° Flood Light LED Bulb, Metal Halide Replacement for Indoor Outdoor Large Area

$32.95

54W LED Corn Light Bulb, E39/E40 Mogul Base 6000 Lumens CRI 85 360° Flood Light LED Bulb, Metal Halide Replacement for Indoor Outdoor Large Area

$46.95

Details
Reviews
Tags
FAQ

* Work with leading edge and trailing edge dimmers
* 115-277V AC Input Range
* Fully isolated plastic case
* Built-in constant current limiting circuit
* Protections: Short circuit / Overload / Over temperature
* Class 2 power supply
* Class II power supply - no FG
* Built-in active PFC function
* Cooling by free air convection
* 100% full load burn-in test
* High reliability
* 3 year warranty

Specifications

Accessory Type	Driver	Connection Type	Pigtail
Dimming Control	External TRIAC	Dimmable	Yes
Driver Type	Constant Current	Input Frequency Range	47 ~ 63 Hz
Input Voltage	115-277 VAC	IP Rating	Dust Proof IP30
Output Channels	Single	Built-in PFC Function	Yes
Power Supply Type	2-Pin Class II, NEC Class 2	Special Features	Dimmable
Type	LED Driver	UL Compliance Number	UL 8750
Package Weight: 8oz (0.23kg)
Package Dimensions: 5" (13cm) x 1.99" (5cm) x 1.99" (5cm)
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable. All specifications are subject to change without notice.
