RGB LED Chain - 20 LED Addressable

Price:   $32.95

  • Model: CHAIN-20Sx5V
  • Shipping Weight: 0.25kg
  • 9999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 15/05/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Mean Well LED Switching Power Supply - RS Series 50W Enclosed LED Power Supply - 24V DC
    $19.95
    36V DC Mean Well LED Switching Power Supply - SE Series 100-600W Regulated Enclosed Power Supply
    $36.95
    Mean Well LED Switching Power Supply - RS Series 50W Enclosed LED Power Supply - 12V DC
    $19.95
    Mean Well LED Switching Power Supply - HLG Series 40-600W AC Dimmable LED Constant Current Driver - 12V DC, B-Type
    $32.95
    • Details
    • Reviews
    • Tags
    • FAQ

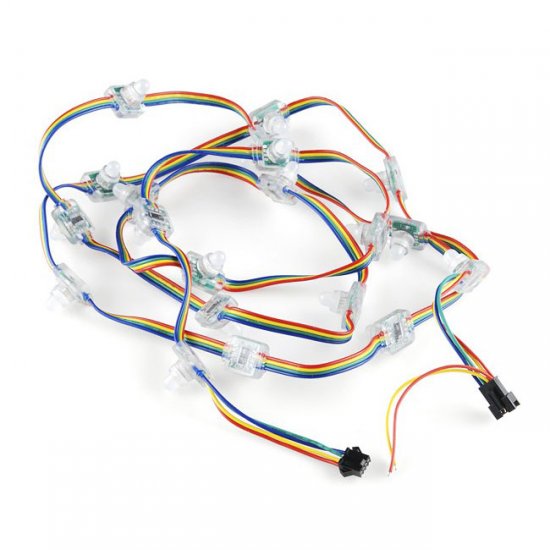

    Let there be light(s)! This festive string of addressable RGB LEDs can add color to indoor or outdoor displays. Much like our addressable LED strips, this chain of lights is composed of 20 individually sealed 10mm RGB LEDs and drivers. The driver for this chain is our old friend, the WS-2801 constant current LED driver. The WS2801 is a common, well-supported driver and example code is available for various microcontrollers. The 2-wire control scheme allows you to control the entire chain over only two GPIOs and because data cascades across the drivers, you can chain as many of these together as you can power!

    The chain is about 7 feet long with 3" of ribbon cable between each light. It’s terminated on either side with a locking 3-pin connector, one male and one female, for ground, data and clock connections. The ground and power are also broken out to bare wire leads on either end. The LEDs mount snugly into a 7/16" hole.

    Note: There are no labels on the wires. You can look at the example code or hook it up as follows: clock - blue, data - green, red - VCC, yellow - GND. There is a black arrow on the underside of the LEDs which indicates the direction of the strand. Also, the datasheet below indicates these chains to contain 32 LEDs per meter, this is incorrect. Each chain holds about 10 LEDs per meter.



    Features

    IP66
    Rated Voltage 5VDC
    WS2801 IC
    20 LEDs per chain
