12 Volt 2 Amp Inline PWM Single Color LED Dimmer

Price:   $6.95

  • Model: LDT-2A
  • Shipping Weight: 0.06kg
  • 589 Units in Stock

(0 reviews)

Please Choose:

  • Black
  • White
(complete orders today,deliverd around 24/09/2026)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Mi Light WiFi Smart Light 16 Millions of Colors Compatible with IOS and Android 4.3 or Above Mobile Tablets Wifi Bridge Between LED Controller for General Decorative Accent Lighting
    $32.95
    MiLight 2.4G Wifi Compatible RGB LED Controller w/ Wireless RF Remote - 6 Amps/Channel
    $29.95
    Mi Light iBox2 2.4G WiFi iBox Controller Hub,smart phone APP Long Distance Control,Compatible with IOS,Android 4.3 or above
    $32.95
    8A 12~24 Volt DC Switch Brightness Control Single Color LED Dimmer
    $9.95
    • Details
    • Reviews
    • Tags
    • FAQ

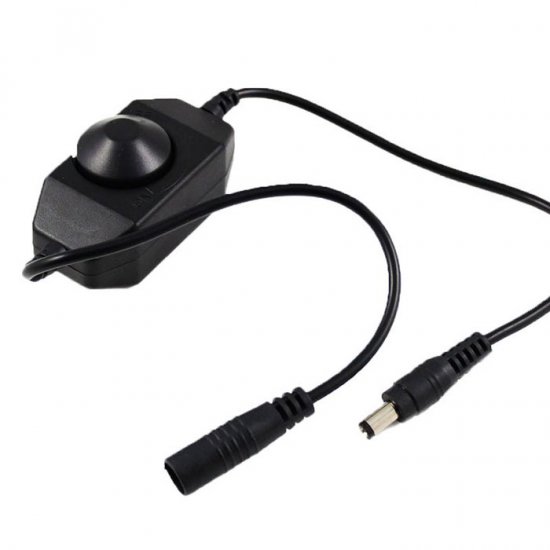

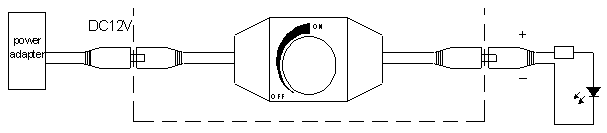

    Universal single color LED dimmer can dim any 12VDC LED products from 0 to 100% using Pulse Width Modulation (PWM) circuit knob control. Has male and female 5.5mm barrel power connector for connecting in-line with our CPS series power supplies. Maximum load is 2 amps. Available with black or white finish.



    Specifications

    Amps 2.00 Amps Amps Per Channel 2 Amps/CH
    Channels 1 Channel Connection Type CPS Female, CPS Male
    Dim Control Knob Control Product size

    (L)61x(W)33x(H)32mm

    Input Voltage 12 VDC Output Voltage DC 12 VDC
    Remote Control In-line Standards And Certifications RoHS Compliant
    Type Dimmers, Single Color Dimmer Function Dim LED product from 0~100% using PWM with CPS series Power Supplies
    Package Weight: 2.1oz (0.06kg)
    Package Dimensions: 4.05" (10cm) x 2.08" (5cm) x 2.08" (5cm)
